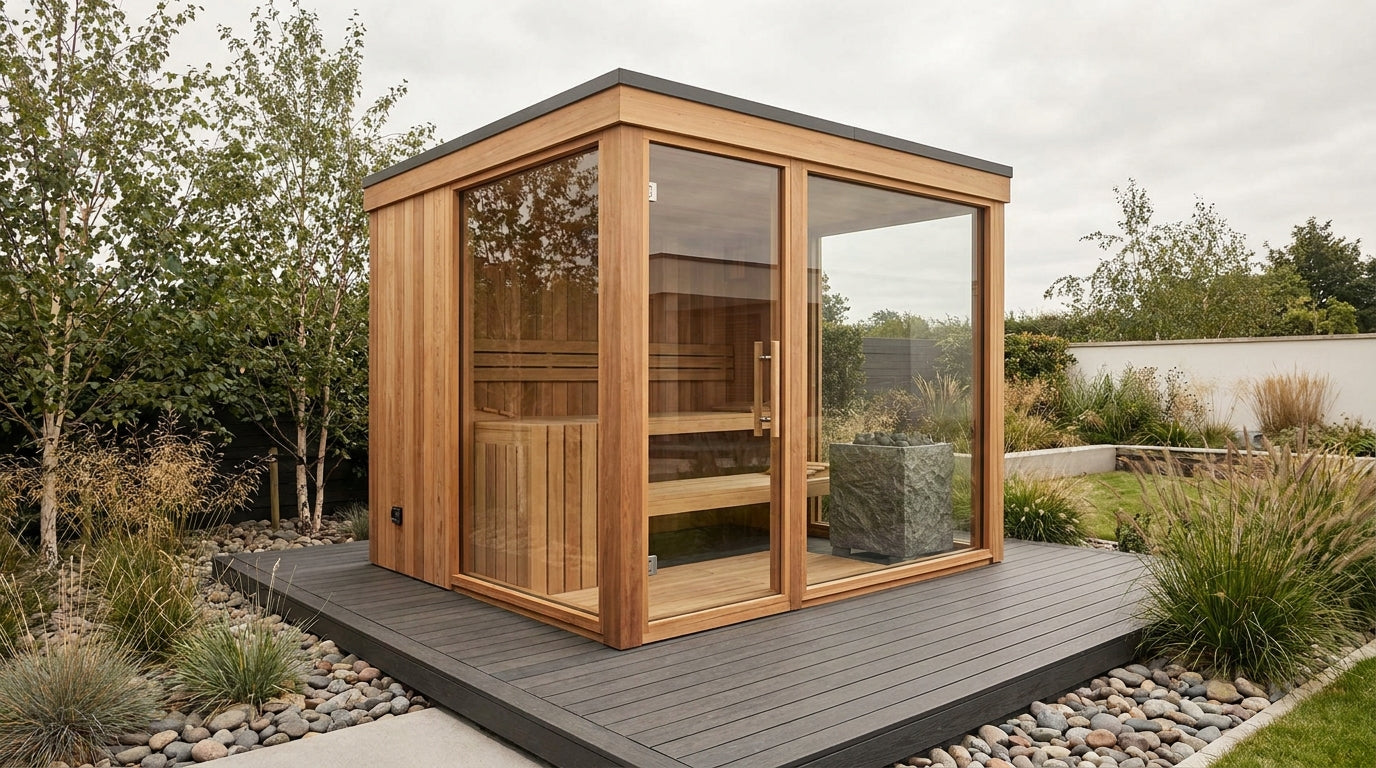

Outdoor Sauna Installation — The Complete Guide

An outdoor sauna is a real piece of infrastructure — it lives outside, it weighs 600–950 lbs, and it draws real electrical current. The installation process is straightforward but unforgiving of corner-cutting. This guide walks through everything from site selection to first session, based on what our customers and installers have learned across hundreds of deployments.

Step 1 — Site selection

You need a level surface, drainage, and proximity to your electrical panel. The ideal spot is:

• Within 50 ft of the main electrical panel — longer runs are possible but the wire gauge goes up and the wire cost compounds
• On the high side of the property — water drains away, not toward the cabin
• With at least 3 ft of clearance on all sides — for ventilation and maintenance access
• Not directly under tree canopy — falling branches damage shingle roofs, and sap stains exterior wood

You don't need to be at the edge of your property. We see customers put cubes and barrels right next to the back patio for daily use, or 30 ft back at the edge of the yard for a ritual destination feel. Both work.

Step 2 — Foundation pad

Three options, in order of cost:

1. Compacted gravel pad ($200–400, DIY 4 hours) — 4" depth of 3/4" crushed gravel on a leveled excavation, compacted in 2" lifts. Works for both barrels and cubes if you're careful with the level.
2. Paver pad ($400–800, DIY 6 hours) — same gravel base + a layer of stone pavers. Looks better, easier to level precisely.
3. Concrete pad ($800–1,500 + a contractor) — overkill for most barrels but recommended for the Norhelm cube due to its 925 lb weight.

The pad needs to be level within 1/2" across the footprint. For a barrel, the pad just needs to support the cradle. For a cube, it needs to be flat enough that all four corner posts touch evenly — otherwise you'll get door-frame racking.

Step 3 — Electrical

Every traditional steam sauna and every hybrid sauna needs a dedicated 240V circuit hardwired by a licensed electrician. There's no plug-and-play option for these heaters — they pull too much current. Specifics:

• Brynsund 4P barrel (6 kW): 240V / 30A / 10-3 NM cable, 30A double-pole breaker
• Myrren 3P hybrid (6 kW steam + 1.8 kW infrared): 240V / 30A for steam + a separate 120V/15A for the infrared panels
• Norhelm 6P cube (8 kW): 240V / 40A / 8-3 NM cable, 40A double-pole breaker

Cost: $400–900 for a typical run from a residential panel within 30 ft. Get a written quote before purchase if you're unsure — sometimes a long underground run is much cheaper than the sauna itself.

Step 4 — Assembly

All STEALA outdoor cabins arrive partially pre-assembled and ship on pallets. Assembly is two adults with basic tools (drill, level, ratchet set, ladder) plus the hardware kit provided.

• Barrel: 4–5 hours for two adults. The cradle assembles first, the staves drop in, then the door frame, then the roof.
• Cube: 14–16 hours across a full weekend. Walls, then the roof, then the glass panels (use the included suction handles — do not lift glass by the edges).

Pro tip: order the heater and stones to arrive separately. Get the cabin assembled and dry-fitted first, then install the heater. This avoids the situation where you have a 60-lb heater in your way during the wood assembly.

Step 5 — First session

1. Run the cabin empty at full temperature for 30 minutes before the first session — this cures the wood and burns off any manufacturing residue.
2. Verify the door seal is correct: with the cabin warm, you should feel essentially no draft at the bottom of the door.
3. For traditional/hybrid: pour water over the stones in small amounts to start. They can crack if you dump a full ladle on cold stones.
4. Keep your first session short — 10 minutes — and see how your body responds before going longer.
